Installation and Setup

SDK Installation

We recommend using officially supported Linux distributions in this page. Linux kernel version 5.4 or higher is required, and Windows is not supported yet.

info

If you are using other Linux distributions, you can reach us at contact@mangoboost.io.

Host (x86_64)

Ubuntu 22.04

~$ wget https://www.mangoboost.io/download?file=mango-sdk_jammy_1.0.0_amd64.deb
~$ sudo apt install ./mango-sdk_jammy_1.0.0_amd64.deb
~$ sudo apt update
~$ sudo apt install mango-sdk

Ubuntu 24.04

~$ wget https://www.mangoboost.io/download?file=mango-sdk_noble_1.0.0_amd64.deb
~$ sudo apt install ./mango-sdk_noble_1.0.0_amd64.deb
~$ sudo apt update
~$ sudo apt install mango-sdk

Redhat Enterprise Linux 9

~$ wget https://www.mangoboost.io/download?file=mango-sdk-1.0.0-1.el9.x86_64.rpm
~$ sudo dnf install ./mango-sdk-1.0.0-1.el9.x86_64.rpm
~$ sudo subscription-manager repos --enable codeready-builder-for-rhel-9-x86_64-rpms
~$ sudo dnf install https://dl.fedoraproject.org/pub/epel/epel-release-latest-9.noarch.rpm
~$ sudo dnf makecache
~$ sudo dnf install mango-sdk

Centos Stream 9

~$ wget https://www.mangoboost.io/download?file=mango-sdk-1.0.0-1.el9.x86_64.rpm
~$ sudo dnf install ./mango-sdk-1.0.0-1.el9.x86_64.rpm
~$ sudo dnf config-manager --set-enabled crb
~$ sudo dnf install epel-release epel-next-release
~$ sudo dnf makecache
~$ sudo dnf install mango-sdk

DPU (AArch64)

Ubuntu 20.04

~$ wget https://www.mangoboost.io/download?file=mango-sdk_focal_1.0.0_arm64.deb
~$ sudo apt install ./mango-sdk_focal_1.0.0_arm64.deb
~$ sudo apt update
~$ sudo apt install mango-sdk

Ubuntu 22.04

~$ wget https://www.mangoboost.io/download?file=mango-sdk_jammy_1.0.0_arm64.deb
~$ sudo apt install ./mango-sdk_jammy_1.0.0_arm64.deb
~$ sudo apt update
~$ sudo apt install mango-sdk

info

mango-sdk is a meta-package to install all SDK components. Each component can be individually installed for your purpose.

~$ sudo apt install mango-cli libmango-dev mango-drivers mango-drivers-spdk

System Setup

PCIe bifurcation

MangoBoost DPU requires enabling x8x8 bifurcation on the PCIe slot to fully utilize the two ports on the card. The steps for configuring bifurcation vary by server vendor. Refer to the vendor’s server manual to find the PCIe slot number and enable x8x8 bifurcation.

For example, on Supermicro servers, modify the following BIOS option to enable PCIe bifurcation.

• Advanced > Chipset Configuration > North Bridge > IIO Configuration -> CPU1 Configuration

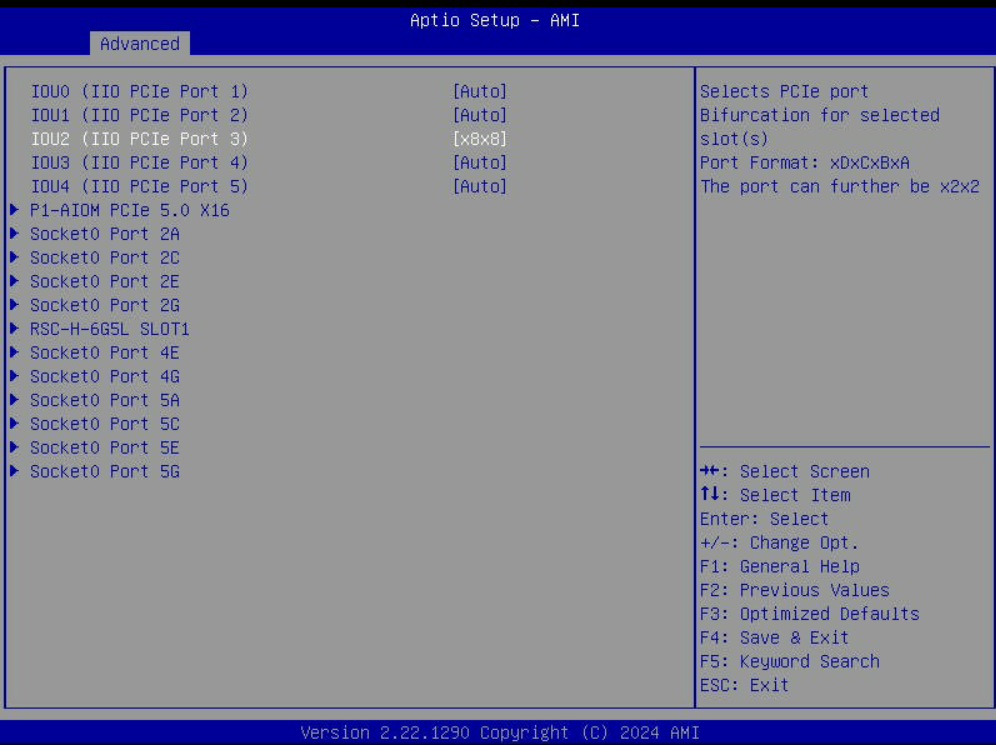

The figure below shows enabling x8x8 bifurcation on IIO PCIe Port 3 in Supermicro SYS-221H-TN24R storage server.

IOMMU setting

Add the following options to the kernel configuration line in /etc/default/grub. Note that a server with AMD CPUs requires amd_iommu=on instead of intel_iommu=on.

~$ sudo vi /etc/default/grub
...
GRUB_CMDLINE_LINUX="intel_iommu=on iommu=pt"
...
~$ sudo update-grub
~$ sudo reboot

info

Some solutions may require additional setup. Refer to each solution's manual for the details.
